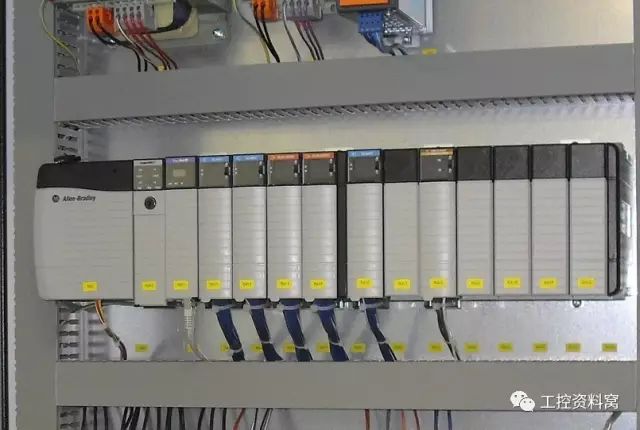

Design Requirements for a Perfect PLC Program
A well-designed PLC program is more than just functional—it must be clear, structured, scalable, and reliable. It should include comprehensive documentation, robust alarm systems, and the ability to simulate operations before deployment. These elements ensure that the system operates smoothly, is easy to maintain, and can adapt to future changes.
1. Simplicity
The most effective PLC programs are those that are simple in design. This means using standardized frameworks, avoiding unnecessary complexity, and relying on straightforward instructions wherever possible. A clean and minimal approach not only reduces errors but also makes debugging and maintenance easier.
At a broader level, optimizing the structure of the program through flow control instructions helps streamline logic. On a smaller scale, replacing single-function instructions with more powerful ones can improve efficiency. Paying attention to instruction order also plays a key role in achieving simplicity.
2. Readability
Readability is essential for both the original programmer and any future users. A readable program is easier to debug, maintain, and even rework if needed. To enhance readability, use modular designs, object-oriented principles, and consistent naming conventions.
In ladder logic, it’s often best to stick with standard symbols for clarity. I/O mapping should be logical and well-documented. Internal devices should follow a regular pattern, avoiding random assignments. Comments are crucial—especially at the beginning of each block or section.
3. Correctness
Correctness is the foundation of any PLC program. The program must function as intended under all normal conditions. This requires a deep understanding of the PLC's instruction set and internal components. Testing unclear instructions with small test programs can help avoid errors during full-scale implementation.
Different PLC models may have variations in instruction behavior, so always consult the manual. Also, some PLCs offer power-down protection, which should be used where necessary. Ensuring correct instruction usage and component handling is critical for program accuracy.
4. Reliability
A reliable PLC program should handle unexpected situations gracefully. It should detect and respond to abnormal conditions, such as power failures or incorrect user inputs, without crashing or causing damage. Interlocking mechanisms and proper error handling are key to building a stable system.
5. Ease of Modification
Flexibility is one of the main advantages of PLCs. Programs should be designed with modification in mind, allowing for quick adjustments without major overhauls. Modular structures and parameterizable sections make this process much smoother.
6. Scalability
Good PLC programs should allow for expansion. When new functions are added, the existing structure should remain intact. This requires careful planning of I/O points, data registers, and other resources to leave room for future upgrades.
7. Complete Alarm System
Industrial environments require robust alarm systems to prevent accidents and minimize losses. PLC programs should include comprehensive fault detection, alarms, and protective measures to ensure safety and system integrity.
8. Simulation Capabilities
Before deploying a program, it’s common to run simulations to verify its functionality. This involves replacing real I/O signals with intermediate variables or data blocks. A well-structured simulation module ensures that the program can be tested effectively before field installation.
PLC Programming Standards
1. Choose an appropriate PLC model and I/O configuration based on the application’s needs.
2. Familiarize yourself with the programming software and available instructions.
3. Plan device allocation, including internal relays, timers, counters, and data registers.
4. Structure the program logically, starting from fault detection to output processing. For large systems, divide the program into functional blocks.
5. Add comments to each block explaining its purpose. Arrange blocks in the order of the process flow to improve readability.
6. Abstract the equipment before designing the program. Include shared factors like emergency stop, overload, and timeout in the main control loop.
7. Ensure the program has a total reset function for quick recovery after faults.
8. Avoid double outputs. Use intermediate relays to manage outputs across different modes.
9. Use Chinese notes for all I/O points, data registers, and other components. Clearly mark NO and NC contacts.
10. Save the final program with a file name that includes project number, date, and version.
Programming Tips
1. Use the MOV command to switch between control modes like "Manual" and "Auto." This simplifies logic and avoids complex interlocks.
2. For analog control, apply filtering techniques like time delay or average calculation to reduce noise and improve accuracy.
3. During debugging, check for JUMP or GOTO statements that might skip important parts of the program.
4. Use a step counter (e.g., +10 increments) to manage sequence control. This makes it easier to insert new steps later.
5. Always include visual and audible alarms for faults. Operators need clear feedback to understand when something goes wrong.
6. Create reusable subroutines for frequently used functions to improve code efficiency.
7. Implement time-based protection by setting timers slightly longer than expected operation times. If a step exceeds the limit, trigger an alarm or stop the process.
8. Use normally closed (NC) inputs for safety switches like emergency stop buttons and light curtains.
9. Design outputs to activate only when needed, reducing energy consumption and wear on components.
10. Follow the principle of "do not move unless necessary." Keep actuator movements controlled and predictable.
11. Single devices should support soft start, automatic switching, and remote control. Ensure smooth transitions between modes.
12. Large equipment like pumps and fans should rotate periodically and track operating time. Allow operators to adjust start/stop sequences if needed.
