The world's largest LED landscape lighting system highlights the beauty of technology

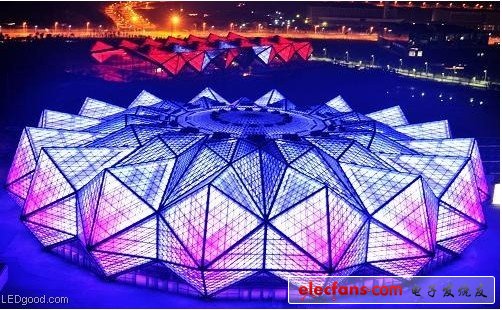

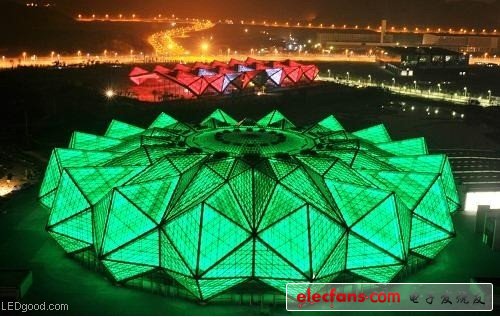

The 26th World University Summer Games will be grandly opened in Shenzhen on August 12th, and all 13 important sports venues will be prepared for brilliant lighting. The Shenzhen Universiade Center is the main stadium area of ​​the Universiade. It has three gem-shaped buildings. The LED lighting system is used to create a more vivid gem-like building lighting, which is particularly eye-catching at night. The Shenzhen Universiade Center ’s LED light art works, with the theme of “Crystal Light Shining Pengchengâ€, express the crystal concept of night architecture more vividly and beautifully than during the day, becoming the biggest highlight of Shenzhen Universiade and becoming the new city image of Shenzhen. The LED Lighting House learned that the project was designed by the LED light art performance by the "Yuexia Jimu" light art creation team. The crystal stone of the Universiade Center that lights the lights is like the crown of the god of the night sky, and it shines brightly. This is also the first time that Shenzhen has tried to apply LED lighting systems to large-scale buildings. More than 23,000 sets of lamps have been used in the Crystal Stadium alone, with a lighting area of ​​more than 110,000 square meters. In the three buildings of the main stadium of the Universiade, the swimming center, gymnasium and sports center, a total of 960,000 lighting-grade LED chips from the world's top brand CREE Cree were installed. After the LED lighting system is adopted, the external image and connotation of modern buildings will be greatly improved, the overall energy consumption will be greatly reduced compared with conventional lighting, and it will have a longer service life and more environmentally friendly and energy-saving.
The world's largest LED luminous ceiling

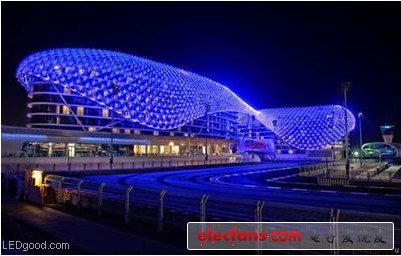

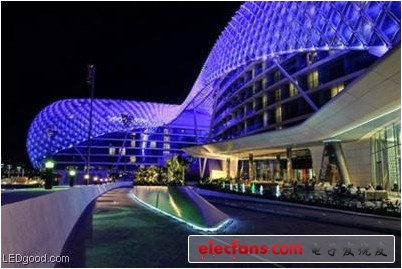

The 5-star Yas Hotel is composed of two 12-story buildings with 500 rooms and an area of ​​85,000 square meters. The most luxurious place is the LED mesh ceiling with colorful lights on the top of the building, and an F1 The racing track crosses. The Yas Hotel was designed by Asymptote architecture in New York, and LED lighting was designed by ARUP, which is the largest LED lighting ceiling in the LED building introduced by LED Lighting Home. ,.
The entire light-emitting cover is composed of a grid of curved steel components, and more than 5,300 diamond-shaped panels are spliced ​​and installed, each illuminated by an independent LED. The LED is remotely controlled by the RDM device, which can change the color of the LED light in sequence, and can also display a simple three-dimensional animation effect when combined. From a distance, it looks like a spaceship from outer space emits a mysterious glare and is quietly parked on the ground. Such a luxurious appearance is also suitable for the wealthy UAE riches.
